1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production

Name: 1500pcsH Speed Rate Automatic Clamp Stranding Machine for Speed Production
Brand: Yihan
Price: 230.00 USD

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production Manufactures

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-JX100

Usage : Stranding, Stranding and twisting

Model : YH-JX100

Main shaft direction : Positive and negative reversible

Spindle speed : 300-7500 adjustment

Strand length : 50-80mm

Number of storage : 99kinds

Speed rate : 1500pcs/H

Strandable wire range : 32AWG-13AWG

Number of windings : 0.5-9999.9 laps/circles

Size : 280*200*200

Packaging Details : wooden package

Price : $230.00/sets 1-2 sets

MOQ : 1 set

Contact Now

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production

Automatic clamp strangding machine wire twisting tool with strand length 50-80mm

FEATURE:

1. Mainly used for wire stranding and can choose the direction of rotation.

2. The automatic twisting machine has large torque,strong finished products and stable quality.

3. Using electronic control,easy to operate,can set the number of twisted turns,accurate and stable.

4. This machine has twisted wire and stranded wire function.The twisting wire strength can be customized from the governor.

The speed can be adjusted,the output of the twisted wire is even,and the speed of the twisted wire can be customized from the adjuster.

The direction of the strand can be selected(including the terminal is well or the contacts are worn)

5.Can be customized as two,three axes and five axes.

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production

Product Description

Model	YH-JX100
Usage	Stranding and twisting
Main shaft direction	Positive and negative reversible
Spindle speed	300-7500 adjustment
Strand length	50-80mm
Number of storage	99kinds
Speed rate	1500pcs/H
Strandable wire range	32AWG-13AWG
Number of windings	0.5-9999.9 laps/circles
weight	10KG
Size	280200200mm
Supply power	220V/50HZ
Rated power	90W

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production

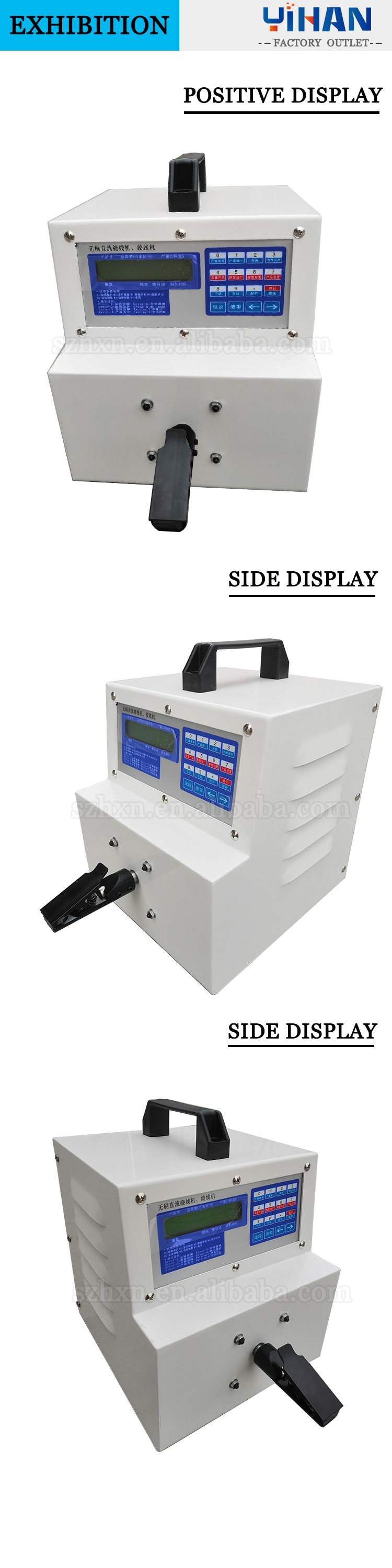

Product Show

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production

Company profile

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production

1500pcs/H Speed Rate Automatic Clamp Stranding Machine for Speed Production Images
